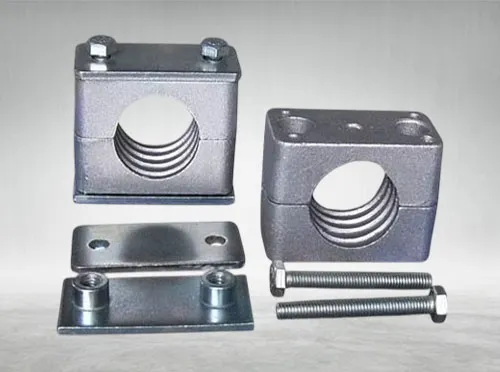

Aluminium Pipe Tube Clamps
Durable Aluminium Pipe Clamp designed for secure and reliable pipe installations
| Clamp Type | Aluminium Series (Solid / Ribbed Design) |
|---|---|
| Material (Clamp Body) | Cast Aluminum Alloy or Machined Aluminum Block |
| Material (Metal Parts) | Zinc-Plated Carbon Steel or Stainless Steel (AISI 304 / 316) |
| Temperature Range | Up to +300°C (ideal for extreme temperature applications) |
| Mounting Options | With Weld Plate / Without Weld Plate / Rail Nut Mounting |
| Construction Options | Single Clamp / Twin Clamp / Multilayer / Rail Base |
| Pipe Diameter Range | Ø 6 mm to Ø 600 mm (customized sizes available) |
| Vibration Damping | High – with solid metal body and rigid mounting |
| Compliance | Based on DIN 3015 Guidelines (Customized as per industrial needs) | Color (Standard) | Silver (Aluminum) |
Features:
- Ideal for extreme environments, offering excellent performance under high temperatures (up to 300°C).
- Made from solid cast or machined aluminium, these clamps provide exceptional mechanical strength.
- When paired with stainless steel hardware, aluminium clamps offer excellent corrosion resistance.
Material and design of clamp body:
- Zinc-plated carbon steel
- Stainless steel (AISI 304/316)
- Aluminum: Colour Natural
Materials and surface finishing of metal parts:
- Zinc-Plated (Carbon Steel) and Natural / Pickled Finish (Stainless Steel)
- The aluminium clamp has natural cast.
- Carbon Steel Grade 8.8 / Stainless Steel
