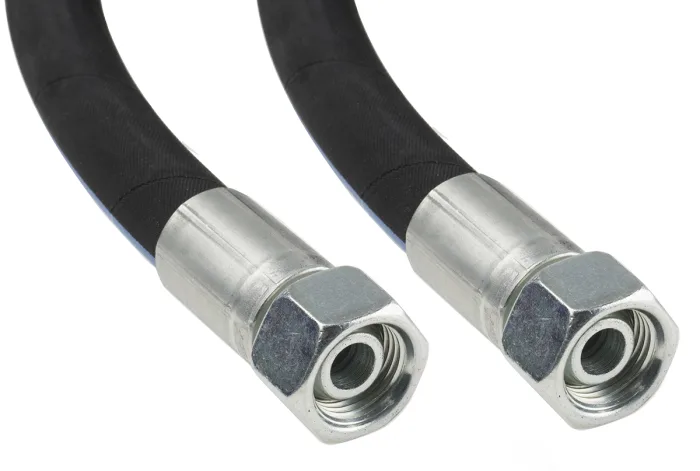

| Hose Type |
Reinforced synthetic rubber or thermoplastic hydraulic hose |
| Inner Tube Material |
Oil-resistant synthetic rubber |
| Standards |
SAE 100 R1, R2, R12 / DIN EN 853, 856, etc. |
| Temperature Range |
-40°C to +120°C (can vary with fluid type) |
| Outer Cover |
Abrasion, weather, and oil-resistant synthetic rubber |
| Construction Options |
3-layer: Inner tube, Reinforcement layer (braided/wire spiral), Outer cover |
| Pipe Diameter Range |
Ø 6 mm to Ø 102 mm (Standard sizes; customized sizes available) |
| Available Sizes |
¼” to 2” inner diameter (or as per customer requirement) |
| End Fittings |
Crimped steel/stainless steel fittings – BSP, NPT, JIC, Flange, ORFS |
Compatibility |
Designed for use with pipe clamp systems to ensure vibration control and hose alignment. |
