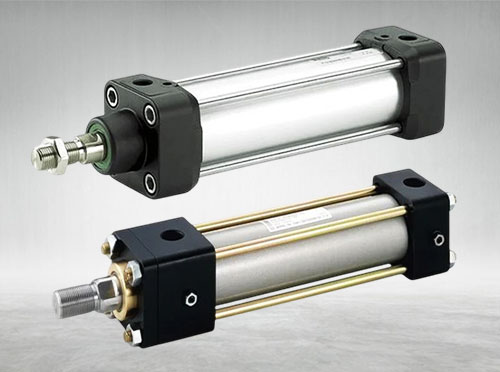

Hydraulic Cylinder Manufacturers, Suppliers and Dealers

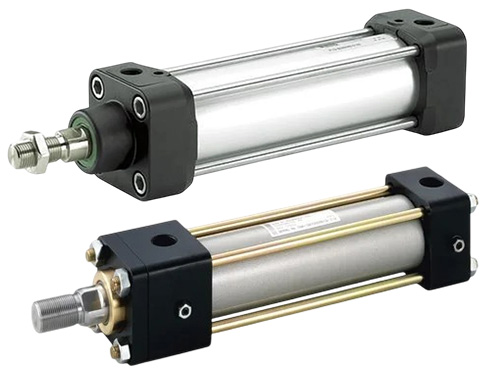

Hydraulic Cylinders
| Cylinder Type | Heavy-Duty Series / Standard Series |
|---|---|
| Material (Body) | Polypropylene (PP), Polyamide (PA), Aluminum |
| Material (Metal Parts) | Weld Plates, Cover Plates, Bolts, Rail Nuts (optional) |
| Temperature Range | PP: -30°C to +90°C PA: -30°C to +280°C Aluminium: up to +300°C |
| Mounting Options | With Weld Plate, Without Weld Plate, Rail Nut Construction |
| Construction Options | Single, Multilayer Assembly, Rail Nuts Mounting, Group Weld Plate (RAP) |
| Pipe Diameter Range | Ø 6 mm to Ø 406 mm |
| Design Standard | DIN 3015 Part 1 (Light), Part 2 (Heavy), Part 3 (Twin) |
| Color (Standard) | Green (PP), Black (PA), Silver/Natural (Aluminium) |
Features:
- Hydraulic cylinders can generate very high linear force using fluid pressure.
- Smooth and Precise Motion.
- Customizable Stroke Lengths and Sizes.
Material and design of Cylinder body:
- Polypropylene Cost-effective, corrosion-resistant
- Ribbed Inner Surface
- Designed according to DIN 3015
Applications
- Construction Equipment used in backhoes
- Cylinders are used in forklifts, pallet jacks, and conveyor systems.
- Employed in braking systems and suspension.
