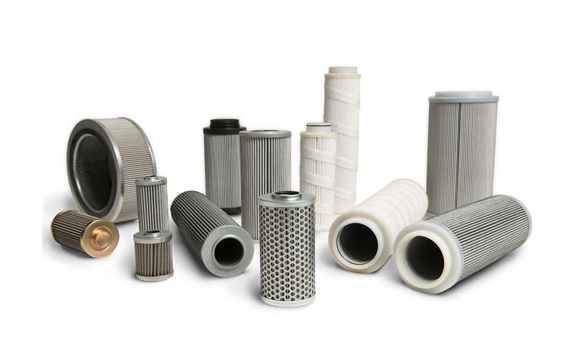

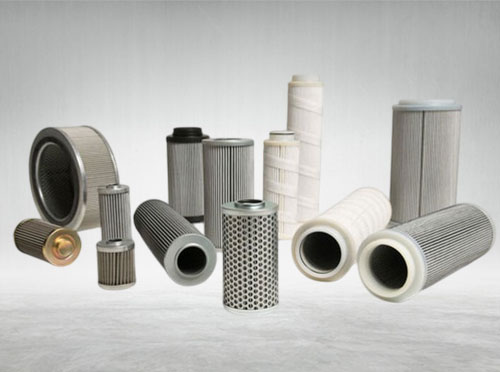

Filtration Products
| Product Type | Hydraulic & Lubrication Filters |
|---|---|
| Filter Series | HPF Series, LFP Series, Spin-On, Cartridge |
| Filtration Rating | 3 to 25 Microns (absolute) |
| Operating Pressure | Up to 420 Bar |
| Construction | Steel / Aluminum / Stainless Steel body with synthetic or cellulose media |
| Mounting Options | In-line, Off-line, Tank top, Return line |
| Temperature Range | -25°C to +120°C |
| Compatible Fluids | Mineral oils, synthetic fluids, water glycol, phosphate esters |
| Applications | Hydraulic systems, lubrication circuits, industrial machinery, mobile equipment, power units |
| Operation | Continuous filtration |
Features:
- High dirt holding capacity for extended service life
- Protects critical components from contamination
- Wide range of filtration ratings
- Easy element replacement & maintenance
- Low pressure drop design for efficient performance
Material & Design:
- Housing: Steel / Aluminum / Stainless Steel
- Filter Media: Synthetic fiber, cellulose, wire mesh
- Seals: NBR / Viton / EPDM
- Bypass valve and clogging indicators available
