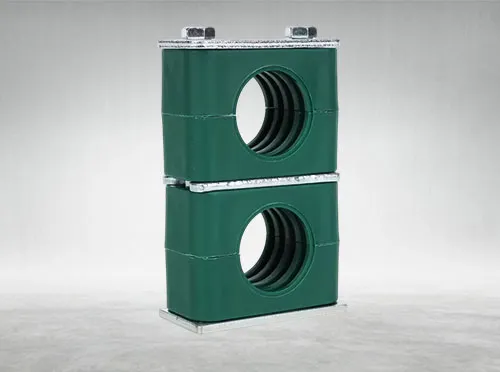

Multilayered pipe clamps

Clamp Type Multilayer (Stackable Clamp Blocks)
Material (Clamp Body) Polypropylene (PP), Polyamide (PA), Aluminum
Material (Metal Parts) Carbon Steel (Zinc-Plated) / Stainless Steel (AISI 304 / 316)
Temperature Range -30°C to +90°C (PP), up to +280°C (PA / Aluminum)
Mounting Options With Weld Plate / Without Weld Plate / Rail Nut Mounting
Construction Options Modular stacking of multiple clamp layers using tie rods and support plates
Pipe Diameter Range Ø 6 mm to Ø 42 mm (custom range available)
Vibration Damping High – suitable for dynamic line systems
Compliance DIN 3015 (Part 1 – Light / Part 2 – Heavy, depending on clamp body type)
Color (Standard) Green (PP), Black (PA), Silver (Aluminum)

Features:

  • Multilayer clamps allow vertical stacking of multiple pipe lines in a single mounting assembly.
  • Configurations can range from 2 to 6 or more layers.
  • Built with high-strength thermoplastics or aluminium.

Material and design of clamp body:

  • Lightweight Polypropylene & chemical resistance.
  • Aluminium and high-temp application.
  • ribbed designs

Materials and surface finishing of metal parts:

  • Carbon Steel / Stainless Steel (AISI 304 / 316)
  • Carbon Steel Phosphated
  • Zinc-Plated / Passivated (CS)
