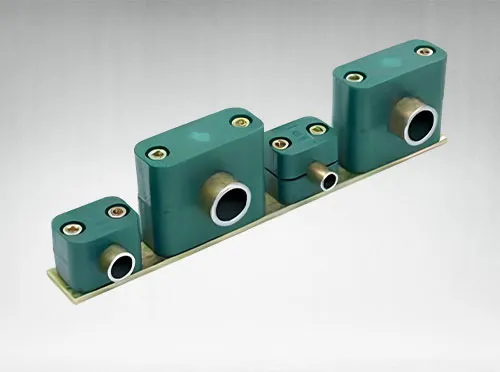

Standard / Light Pipe Clamps
| Clamp Type | Standard / Light Series |
|---|---|
| Material (Clamp Body) | Polypropylene (PP), Polyamide (PA), or Aluminum (upon request) |
| Material (Metal Parts) | Carbon Steel (zinc-plated) or Stainless Steel (AISI 304 / AISI 316) |
| Temperature Range | -30°C to +90°C (Standard PP); up to +280°C for Aluminum or PA |
| Mounting Options | With Welding Plate / Without Welding Plate |
| Construction Options | Single Clamp, Multilayer Assembly, Rail Nuts Mounting, Group Weld Plate (RAP) |
| Pipe Diameter Range | Ø 6 mm to Ø 102 mm (Standard sizes; customized sizes available) |
| Vibration Damping | Good (with Polypropylene body) |
| Compliance | DIN 3015 (Part 1 – Light Duty Series) | Color (Standard) | Green (PP), Black (PA), Silver (Aluminum) |
Features:
- Designed as per DIN-3015 part-1
- Standard Pipe/Tube clamps available in Plastic Polypropylene and Polyimide, Aluminum clamp bodies with Steel / S.S. plates & bolts
- W.P. range up to 1500 PSI (100 BAR) for application in Steel / stainless steel piping system
Material and design of clamp body:
- Polypropylene: Colour Green
- Polyamide: Colour Black
- Aluminum: Colour Natural
Materials and surface finishing of metal parts:
- Carbon Steel Trivalent or Yellow zinc plated (Standard Trivalent plated)
- Carbon Steel Phosphated
- Stainless Steel – SS 304 or SS 303
